The hunt for the muon neutrino

In order to understand how the weak force works and to explore the possible existence of two neutrinos, it was necessary to study neutrino interactions at high energies. Leon Lederman, Melvin Schwartz and Jack Steinberger were working to achieve a sufficiently intense neutrino beam for several years. This neutrino beam was produced in several steps:

– Protons were accelerated to an energy of 15 GeV (1 GeV = 109 eV) in the Brookhaven accelerator AGS (Alternating Gradient Synchrotron) on Long Island, USA.

– The intense proton beam was directed onto a target of beryllium. In each collision a handful of particles were produced, mainly pi-mesons.

– The many pi-meson decays resulted in a collimated beam of muons and neutrinos.

– The neutrinos, the muons and the surviving pi-mesons crashed into a 13 m thick steel shield, which stopped all particles except the neutrinos.

The steel shield, which was made of armour plates from scrapped warships, was essential for the experiment. All particles, except the neutrinos, had to be prevented from reaching the detector, as they could give rise to a large number of particle reactions and completely swamp the incredibly few neutrino reactions. The pi-mesons, which interact through the strong force, were stopped after less than half a metre of armour plates, while the muons, which interact mainly through the electromagnetic force, penetrated much further. The steel shield, which had a weight of about 2000 tons, was dimensioned to stop the penetrating muons.

For the neutrinos to have a fair chance to interact, i.e. collide, the detector had to be massive. Furthermore, the charged particles produced in the collision had to be detected. Leon Lederman, Melvin Schwartz and Jack Steinberger studied different types of detectors before they decided, in 1960, to construct a 10 ton spark chamber. The detector was divided into 90 plates of aluminium, each an inch thick. The spaces between the plates were filled with neon gas.

As neutrino interactions are very rare, the background from other processes was disturbing, particularly the background caused by the penetrating muons from the cosmic radiation. The background was reduced by keeping the experiment active only during the short pulses, 3 microseconds, when the accelerator delivered particles. During the 8 month experiment period they accumulated data for 25 days, but because of the short pulses, the efficient time for the detector was only 6 seconds.

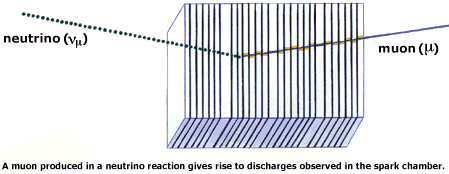

Each neutrino pulse contained 107 neutrinos. During the experiment a total of 1014 neutrinos went through the detector during the six seconds it was active. When a reaction took place, a high voltage was applied to the spark chamber and a discharge occurred where the produced charged particles had passed. The sparks were photographed and gave a picture of the particles’ path through the detector. A total of 51 neutrino interactions were registered with a muon observed in the spark chamber. These results showed that the neutrinos, produced together with muons, give rise to muons, not electrons.

The muon neutrino was discovered!

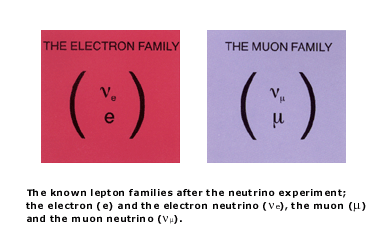

The experiment of the Nobel Prize winners not only showed that the muon and the muon neutrino form a pair, it also showed that the other two leptons, the electron and the electron neutrino, form a pair. The grouping in pairs of elementary particles is fundamental in particle physics and became even more significant after the establishment of the so called standard model.

Several experiments have since been carried out both in the USA and Europe in order to study the innermost structure of matter and to further explore the weak force.



The neutrino

The neutrino is the most elusive of the known elementary particles. It has no electric charge and, as far as we know, no rest mass. The neutrino hardly interacts with matter at all. It can go through lead with a thickness of 10 000 billion kilometres (one light year) without interacting. The neutrino interacts with matter only through the weak force.

In 1930 the Austrian, Wolfgang Pauli (Nobel Prize 1945) suggested a new type of particle, the neutrino. Many of those who heard of the new particle received the news with a certain scepticism.

A few years later, Enrico Fermi, Italy (Nobel Prize 1938) developed the theory for the weak force. Fermi called Pauli’s particle the small, neutral particle – the neutrino.

In 1956 Frederick Reines and Clyde Cowan, USA, performed an experiment demonstrating the existence of the neutrino.

The weak force

Fermi’s description of the weak force was incomplete. According to his theory the probability for a reaction at very high energies could exceed 1, which is impossible. It was therefore important to study the weak force at high energies, but the problem was how! It was possible to produce beams of particles with high energy, but these particles either interacted electromagnetically or strongly. As both the electromagnetic and the strong force dominate over the weak force the latter will not be noticeable in the competition. It was in November 1959 after a discussion during coffee-break at Colombia University that Melvin Schwartz got the idea:

One should use neutrinos!

The neutrinos would come from the decays of pi-mesons. The question was whether neutrinos produced together with muons could give rise to both electrons and muons or exclusively muons.

The hunt for the muon neutrino had started!

The four forces

There are four fundamental forces acting in nature: the gravitational force, the electromagnetic force, the strong and the weak force. If one compares the strength of the different forces, setting the gravitational force at 1, the proportion becomes:

the gravitational force 1
the weak force 1031
the electromagnetic force 1036
the strong force 1038

The gravitational force acts on macroscopic objects like man, the earth, the sun, but because of its minute strength it is completely uninteresting for elementary particles. The electromagnetic force is 100 000 times stronger than the weak force and the strong force is 10 million times stronger than the weak force. The weak force acts between all particles (except the photon which is the carrier of the electromagnetic force) and results in the decay of many different particles. In order to exclusively study the effect of the weak force, it is necessary that the other two, completely dominating forces, are not active. The electromagnetic force acts between charged particles. The strong force acts between hadrons, a group of particles constructed of quarks.

The best way to study the weak force is with the help of the neutrino.

Leptons and quarks

Matter is composed of two types of particles, leptons and hadrons. The hadrons are constructed of quarks, while the leptons do not seem to be constructed of other constituents. As the experiment of the Nobel Prize winners so convincingly showed, the leptons are grouped in pairs. This grouping into pairs also occurs for the quarks. According to the generally accepted model in particle physics, the standard model, the number of lepton pairs and quark pairs should be the same. A lepton pair and a quark pair are said to form a generation. The most elementary constituents of matter form three generations. Out of the six quarks and six leptons, the top quark and the tau neutrino have not yet been discovered, but particle physicists would be very surprised if they did not exist. Up to now the standard model describes very well how the forces between leptons and quarks act. Time will show whether there are more than three generations in the world of particles.
